Sistemas COTS Rugerizados

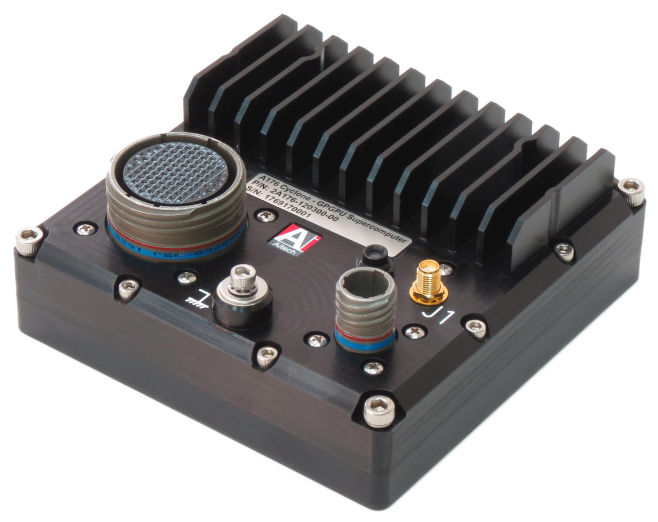

A176 Cyclone Aitech Rugged SWaP

Sistemas COTS Rugerizados compactos prevalidados para un rápido time-to-market en aplicaciones de Defensa (tierra, marina, aviación y vehículos no tripulados), donde se demande una plataforma compacta y fiable en multitud de condiciones, incluyendo temperaturas extremas, choque, vibración e interferencias electromagnéticas.

Escalables y con gran flexibilidad de combinaciones de E/S, permiten la personalización del equipo para cada aplicación específica.

  • IP67
  • Sin restricciones ITAR
  • MIL-STD
  • Todos los S.O.

A172

Procesadores Xeon E3 ó Core i7
Hasta 32 GB DDR3L SDRAM
Almacenamiento 128 ó 512 GB
1 TB Almacenamiento Extraíble
MIL-STD-704 y MIL-STD-1275
Windows™ / Linux® / VxWorks®
IP65

E/S:

  • Gigabit Ethernet
  • Discrete I/O
  • Serial Ports
  • DVI & Composite Video Outputs
  • USB 2.0
  • CANbus
  • Stereo Audio: Line IN + Line OUT

A175

Avionics Computer con interfaz MIL-STD-1553B
Envolvente Jaula de Faraday
Filtros EMI/RFI según MIL-STD-461/2
User-configurable FPGA

E/S:

  • MIL-STD-1553B
  • Remote Terminal
  • Gigabit Ethernet Port
  • ARINC-429 In/Out
  • Analog A/D, D/A In/Out
  • 0-28V Discretes In/Out
  • Serial Ports
  • Address-enabled Location Monitor
  • Multiple Similar Units to Auto-configure based on Location in the Vehicle
  • Internal Reference Voltage/Current Sources
  • Onboard Temperature Sensor
  • Electronic Eapsed Time Meter
  • Compact and Lightweight
  • Single Board, High Reliability Design
  • Extremely Low Power Consumption
  • Environmentally Sealed
  • Free air, Natural Convection/Radiation-cooled

A176

La GPGPU Rugerizada más pequeña y potente del mercado militar. Disponible plataforma de evaluación y desarollo SW

  • SWaP Optimized Rugged HPEC
  • Ultra Small Form Factor (SFF) – 105 mm [5.1″] square, < 1 kg [2.2 lbs.] NVIDIA® Jetson™ new TX2 System on Module NVIDIA Maxwell™ (TX1) or Pascal™ (TX2) Architecture GPU, with 256 CUDA cores ARM® Cortex® A57 Quad-Core CPU 1 TFLOPS H.264/H.265 HW Encoder Best Available Performance per Watt – >60 GFLOPS/W
  • SATA SSD with Quick Erase & Secure Erase
  • 8 GB LPDDR4 (TX2)
  • Video Capture via SDI / RS170 Compsite Inputs
  • I/O
  • Gigabit Ethernet
  • USB 2.0
  • UART Serial
  • CANbus
  • Discretes
  • Video Output – DVI/HDMI
  • Video Inputs
  • Composite
  • SDI
  • Linux (Tegra) OS – supports CUDA, OpenGL, OpenGL ES, EGL
  • Small Form Factor 127 x 129 x 52 mm, <1 kg
  • Wide input power range – 11 to 36 Vdc
  • Power Consumpton 8-10 W typical, 17 W (max)

A180

Multi-Role Computer (MRC) listo para desplegar en cualquier para cualquier tipo de aplicación

  • High Performance PowerPC Platform
  • GPS Navigation Receiver
  • Digital Map Functionality
  • Internal Solid State Mass Storage
  • Large Variety of I/O Interfaces
  • ARINC-429
  • ARINC-708
  • Analog In/Out
  • Fast Ethernet
  • MIL-STD-1553B
  • Serial Communication
  • USB 2.0
  • Discrete I/O
  • Analog & Digital Video In/Out
  • Stereo Audio Output
  • Supports Video with Graphics Overlay
  • Full BIT Capability
  • Rugged Small Form Factor Enclosure
  • Light Weight System: < 7.5 kg
  • Internally Conduction Cooled Externally Convection Cooled
  • Modular 28 Vdc Power Supply
  • EMI/RFI Protection
  • RTOS Support
  • WindRiver VxWorks®
  • Green Hills INTEGRITY®

A190 Redibuilt

Solución COTS para cumplir requisitos MIL-STD en vehículos terrestres y aéreos. No requiere NREs ni desarrollos adicionales

  • Front Panel I/O board with MIL-DTL-38999 Military Connectors
  • Core™ i7 Processor
  • VPX Architecture
  • Compact and Lightweight
  • Internally Conduction-Cooled
  • Two External Cooling Configurations
  • Convection and Radiation Cooling by Fins
  • Cold Plate-Cooling
  • Fully Sealed Faraday Cage and Complete EMI/RFI Filtering
  • Environmentally Sealed
  • 18 – 36 Vdc Input Power
  • High Speed SDRAM
  • SATA Flash SSD Mass Storage
  • Video/Graphics Capabilities
  • Plentiful I/O
  • Gigabit Ethernet
  • USB
  • Serial Ports
  • Discrete I/O
  • MIL-STD-1553B
  • ARINC-429
  • Video Outputs
  • Audio I/O
  • Windows Suppor

NightHawk RCU

Remote Interface Unit (RIU) / Data Concentrator Unit (DCU)

  • Embedded PC-based Remote Interface Unit (RIU) / Data Concentrator Unit (DCU)
  • High Performance PC – Low Power Intel Processor in a Lightweight, Passive Air-cooled Rugged and Sealed Enclosure
  • Intel® Atom™ N270 Processor (Navy Pier Platform) at 1.6GHz with 2GB DDR2 SDRAM
  • Data Storage – from 4 to 8 GB SSD Standard, with Optional Expansion to 250 GB SSD
  • Complete Set of Standard PC I/O Interfaces (Dual Gigabit Ethernet, Video Graphics, Stereo Audio in/out, USB, RS-232/RS-422/RS-485 Serial Ports, Parallel Port, PS/2 Ports)
  • Extensive Internal Support for Added Peripherals and I/O Expansion
  • 18-36* VDC Power Input with EMI/EMC-compliant Power Input Filter
  • Three (3) Rugged MIL-DTL-38999 Connectors (1 – Power, 2 – Standard PC I/O, 3 – Custom I/O)
  • Designed for Harsh Mechanical, Climatic, Chemical and Electrical Applications
  • Supported OS: Windows Embedded XP, Linux, VxWorks
