Productos > Sistemas > IoT M2M y Gateways

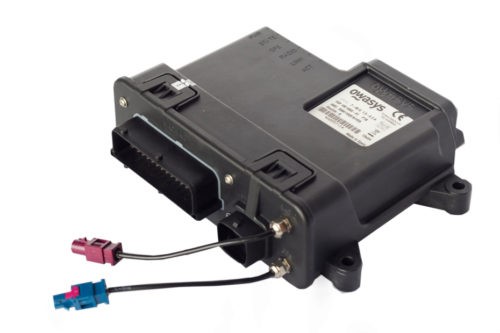

IoT M2M y Gateways

Sector: Automatización Defensa Transporte

Categorías

Fabricantes

Nuevas y potentes plataformas M2M embebidas y abiertas basadas en Linux con enormes posibilidades de conectividad para desarrollar aplicaciones telemáticas y de telemetría.

Plataformas embebidas para comunicaciones inalámbricas que incluyen funcionalidades como: GSM/GPRS/EDGE, UMTS/HSPA & LTE, WiFi, BlueTooth, TETRA, Satélite…

GPS, Ethernet, CAN Bus, K-line. I/Os analógicas y digitales, RS232, RS485, etc.

Diseños robustos y resistentes al agua de grado industrial.

Open embedded Linux.

Equipos de monitorización y control remoto.

Modelos disponibles

owa450

  • IP40 protection
  • Global LTE Cat 1: global 4G with 3G/2G fallback
  • ARM Cortex A8 32bit 800MHz
  • 1GB flash memory + 512MB DDR3
  • Running standard Debian 9
  • Highly customizable and powerful as any Linux PC
  • GNSS (GPS + GLONASS + Galileo)
  • Accelerometer/Gyroscope/Magnetometer & Dead reckoning
  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 4.2

Wide variety of interfaces:

  • 2 CAN bus (full speed 1Mbps CAN 2.0B)
  • CAN FD buses
  • Up to 2 K-line bus
  • Digital & Analog I/O
  • 3 RS232 & 2 RS485
  • USB Host 2.0
  • Ethernet, Maxim 1-wire, uSD card slot, Audio Codec…

Power saving modes & Li-Ion backup battery

owa4x

  • IP67 – waterproof and dust industrial grade protection
  • GSM/GPRS & UMTS/HSPA LTE
  • Optional Global LTE Cat 4: global 4G with 3G/2G fallback
  • ARM Cortex A8 32bit 800MHz
  • 1GB flash memory + 512MB DDR3
  • Running standard Debian 9 .
  • Highly customizable and powerful as any Linux PC
  • GNSS (GPS + GLONASS + Galileo)
  • Accelerometer/Gyroscope/Magnetometer &apm; Dead reckoning
  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 4.2

Wide variety of interfaces:

    • Up to 4 CAN bus (full speed 1Mbps CAN 2.0B)
    • Up to 2 K-line bus
    • Digital & Analog I/O
    • 3 RS232 & 1 RS485
    • USB Host 2.0
    • Ethernet, Maxim 1-wire, uSD card slot, Audio Codec…
  • Power saving modes &apm; Li-Ion backup battery

owa3x

  • GSM/GPRS & UMTS/HSPA
  • GPS
  • Embedded IP functionality
  • Wide variety of interfaces:
    • Analog and Digital I/O
    • 3 RS232 & 2 RS485
    • 3 CAN, 2 K-Line & iButton
    • Audio, USB
    • Ethernet, uSD, etc.
  • Optional Communication technologies:
    • Bluetooth™ (Bluetooth 2.1, BLE)
    • WiFi
    • I/Os expansion board
  • Complete development environment and software packages.
  • Highly customizable & Remote Over-The-Air Update (OTA)

owa11

owa11

  • IP67 – waterproof and dust industrial grade protection
  • Easy installation, integrated antennas
  • Fully configurable funtionality in real time:
    • Events: impact detection, speeding, movement/stops…
    • Versatile reporting. Configure which data to report, when and how (periodically, interruptions…)
    • Configurable internal 3-axis accelerometer
    • 3 different power modes
    • 2 fully configurable IOs or support for 4 iButton temperature sensors
  • Configurable in real-time. OTA update capability for firmware
  • High Capacity 1800 mAh integrated back-up battery
  • GPS
  • Quad band GSM/GPRS (integrated antennas)
    Optional HSPA+ module

owa5x

  • IP67 – waterproof and dust industrial grade protection
  • Global LTE Cat 4: worldwide 4G with 3G/2G fallback
  • ARM i.MX8 M Plus Quad A53 64bit 1.6GHz
  • 2GB LPDDR4 (4GB optional)
  • 1GB NAND flash memory + 8GB eMMC (16GB optional)
  • uSD card slot for additional storage
  • Running standard ARM Linux Debian 11
  • Highly customizable and powerful, as any Linux. Programmable in C, Python, Go…
  • GNSS (concurrent GPS + GLONASS + QZSS + BeiDou)
  • Accelerometer/Gyroscope & Dead reckoning
  • WiFi 802.11 ac
  • Bluetooth 5.0
  • Wide variety of interfaces:
    • Up to 4 CAN FD bus
    • 12 Digital & 4 Analog I/O
    • 2 x RS232 or 1 x RS232 & 1 x RS485
    • USB Host 3.0
    • Automotive Ethernet…
  • Power saving modes & Li-Ion backup battery
