IoT M2M and Gateways
Sector: Defense Automation Transportation
Categories
Manufacturers
Powerful new embedded and open Linux-based M2M platforms with enormous connectivity possibilities to develop telematic and telemetry applications.
Embedded platforms for wireless communications including functionalities such as GSM/GPRS/EDGE, UMTS/HSPA & LTE, Wi-Fi, Bluetooth, TETRA, Satellite…
GPS, Ethernet, CAN Bus, K-line. Analogue and digital I/O, RS232, RS485, etc.
Robust, industrial-grade water-resistant designs.
Open embedded Linux.
Monitoring and remote-control equipment.
Available models
- IP40 protection
- Global LTE Cat 1: global 4G with 3G/2G fallback
- ARM Cortex A8 32bit 800MHz
- 1GB flash memory + 512MB DDR3
- Running standard Debian 9
- Highly customizable and powerful as any Linux PC
- GNSS (GPS + GLONASS + Galileo)
- Accelerometer/Gyroscope/Magnetometer & Dead reckoning
- WiFi 802.11 a/b/g/n/ac
- Bluetooth 4.2
Wide variety of interfaces:
- 2 CAN bus (full speed 1Mbps CAN 2.0B)
- 2 CAN FD buses
- Up to 2 K-line bus
- Digital & Analog I/O
- 3 RS232 & 2 RS485
- USB Host 2.0
- Ethernet, Maxim 1-wire, uSD card slot, Audio Codec…
Power saving modes & Li-Ion backup battery
- IP67 – waterproof and dust industrial grade protection
- GSM/GPRS & UMTS/HSPA & LTE
- Optional Global LTE Cat 4: global 4G with 3G/2G fallback
- ARM Cortex A8 32bit 800MHz
- 1GB flash memory + 512MB DDR3
- Running standard Debian 9
- Highly customizable and powerful as any Linux PC
- GNSS (GPS + GLONASS + Galileo)
- Accelerometer/Gyroscope/Magnetometer &apm; Dead reckoning
- WiFi 802.11 a/b/g/n/ac
- Bluetooth 4.2
Wide variety of interfaces:
-
- Up to 4 CAN bus (full speed 1Mbps CAN 2.0B)
- Up to 2 K-line bus
- Digital & Analog I/O
- 3 RS232 & 1 RS485
- USB Host 2.0
- Ethernet, Maxim 1-wire, uSD card slot, Audio Codec…
- Power saving modes &apm; Li-Ion backup battery
- GSM/GPRS & UMTS/HSPA
- GPS
- Embedded IP functionality
- Wide variety of interfaces:
- Analog and Digital I/O
- 3 RS232 & 2 RS485
- 3 CAN, 2 K-Line & iButton
- Audio, USB
- Ethernet, uSD, etc.
- Optional Communication technologies:
- Bluetooth™ (Bluetooth 2.1, BLE)
- WiFi
- I/Os expansion board
- Complete development environment and software packages.
- Highly customizable & Remote Over-The-Air Update (OTA)

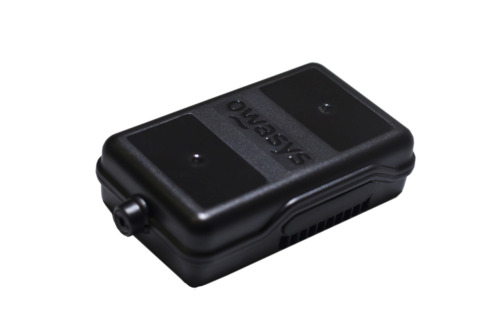

owa11
- IP67 – waterproof and dust industrial grade protection
- Easy installation, integrated antennas
- Fully configurable funtionality in real time:
- Events: impact detection, speeding, movement/stops…
- Versatile reporting. Configure which data to report, when and how (periodically, interruptions…)
- Configurable internal 3-axis accelerometer
- 3 different power modes
- 2 fully configurable IOs or support for 4 iButton temperature sensors
- Configurable in real-time. OTA update capability for firmware
- High Capacity 1800 mAh integrated back-up battery
- GPS
- Quad band GSM/GPRS (integrated antennas)
Optional HSPA+ module
- IP67 – waterproof and dust industrial grade protection
- Global LTE Cat 4: worldwide 4G with 3G/2G fallback
- ARM i.MX8 M Plus Quad A53 64bit 1.6GHz
- 2GB LPDDR4 4GB optional
- 1GB NAND flash memory + 8GB eMMC 16GB optional
- uSD card slot for additional storage
- Running standard ARM Linux Debian 11 .
- Highly customizable and powerful, as any Linux. Programmable in C, Python, Go…
- GNSS (concurrent GPS + GLONASS + QZSS + BeiDou)
- Accelerometer/Gyroscope & Dead reckoning
- WiFi 802.11 ac
- Bluetooth 5.0
- Wide variety of interfaces:
- Up to 4 CAN FD bus
- 12 Digital & 4 Analog I/O
- 2 x RS232 or 1 x RS232 & 1 x RS485
- USB Host 3.0
- Automotive Ethernet…
- Power saving modes & Li-Ion backup battery
