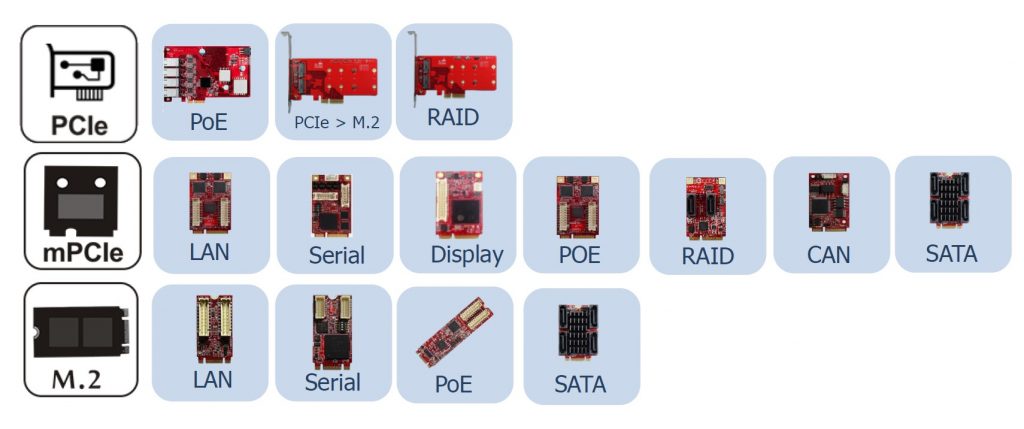

Adaptadores Embedded

Adaptadores Embedded

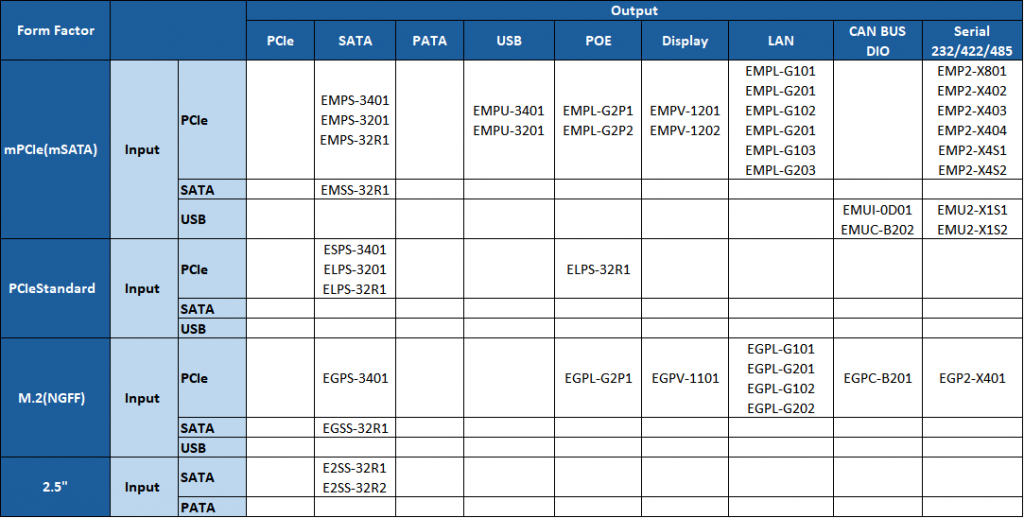

Los Adaptadores Embedded aportan funcionalidades extra de almacenamiento y expansión mediante puertos PCie, USB, SATA, PATA, SD, mSATA,… logrando más capacidad de almacenamiento y nuevas conexiones (VGA, HDMI, LVDS, LAN, RS-232/422/485, entre otras).

Disponen de conectores de oro 30μ” (Golden finger) para asegurar un anclaje robusto.

Opciones de Rango de Temperatura:

  • Desde 0°C hasta +70°C.
  • Desde -40°C hasta +85°C (Temperatura extendida).

Posibilidad de barnizado/tropicalizado.

Incluyen certificaciones e informes sobre los tests a los que han sido sometidos para que el sistema donde se implemente mantenga su certificación.

Se suministran con drivers para todos los sistemas operativos.

  • Dual isolated GbE LAN ports
  • Complies with EN61000-4-5 1kV Surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Flexible daughter board with cable to fit into different system
  • Optional terminal mounting hole or bracket for daughter board

  • PCIe 2.0 compliant. RS-232/422/485 mode configurable by software
  • Up to 25 Mbps serial data rate. 16C550 compatible. 256-byte FIFOs
  • Full RS-232 functions with DB9 connector
  • Minimize possible mechanical intervention without daughterboard
  • Termination resistor enabled/disabled by DIP switch
  • RI/5V/12V output switched by Jumper
  • ESD(Electrostatic Discharge) protection circuit to prevent system damage

  • CANbus 2.0B backward compatible with 2.0A
  • Support baud rate 100/125/250/500(default)/800/1000K
  • Support CAN message acceptance filter
  • Keep configuration after hardware reboot
  • Up to 6000 CAN messages per second (receive data)
  • Support Listen-only mode
  • Additional driver to support Linux SocketCAN
  • Support SAE J1939 high layer protocol (Optional)
  • Termination resistor enabled/disabled by jumper
  • Complies with EN61000-4-5 2.5kV Surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

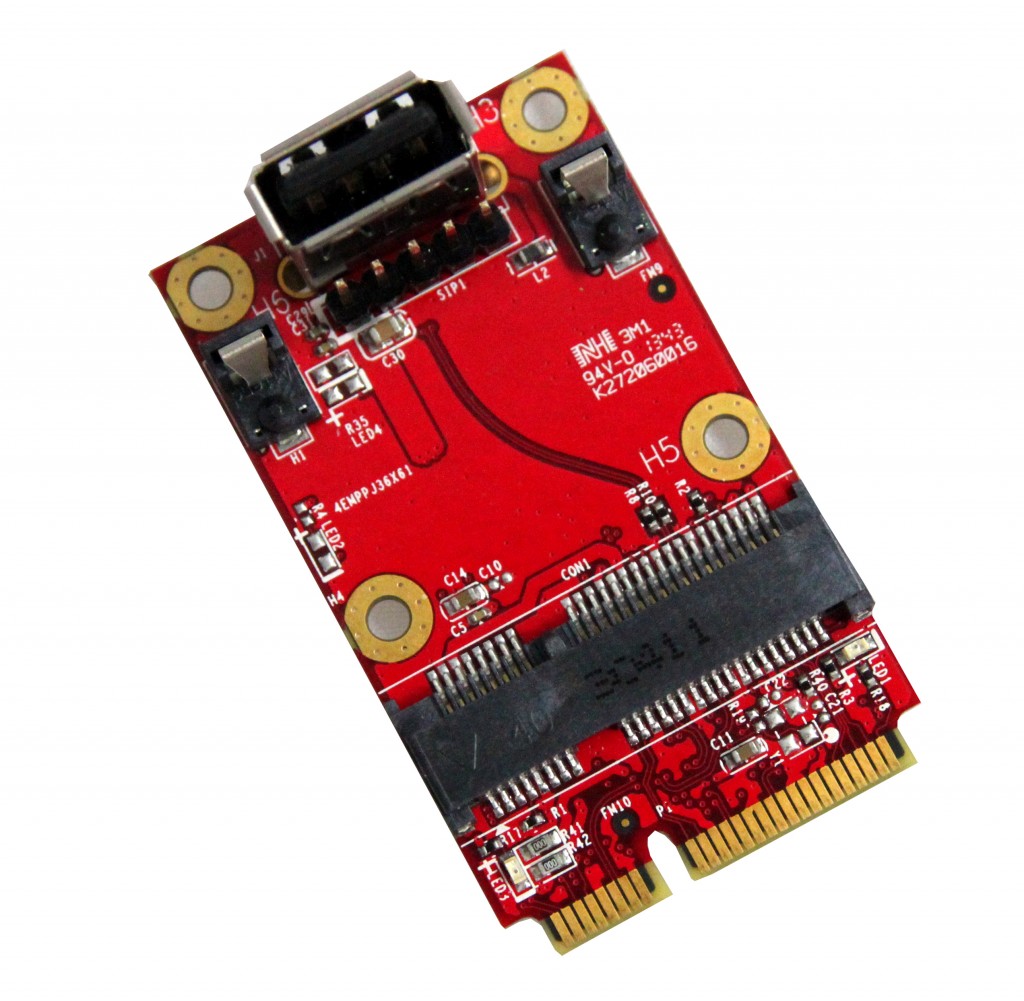

  • Supports 3rd mounting hole and USB Pin header for outof-minicard installation

  • VGA Output up to 1920×1080. up to 75Hz vertical rate
  • HDMI up to 1080P, Ultra low power consumption
  • Allow for 90º, 180º, and 270º rotation of on-screen images
  • DVI-D Single Link up to 1080P

  • mPCIe to dual SATA III ports
  • Low power consumption
  • Supports AHCI, Port-Multiplier
  • Supports Native Command Queuing
  • Supports Hardware RAID 0, RAID1

  • Supports four isolated GbE LAN ports
  • Four independent PSE channels
  • Complies with IEEE 802.3af/ IEEE 802.3at, up to 15.4W/30W at 48V per PoE port
  • Supports 12V~24V power input via 6pin PCIE-ATX
  • Supplies total power up to 75W
  • Complies with EN61000-4-5 2kV Surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
