NVS-MIL2004HSR: Router
Switch militar de alta disponibilidad

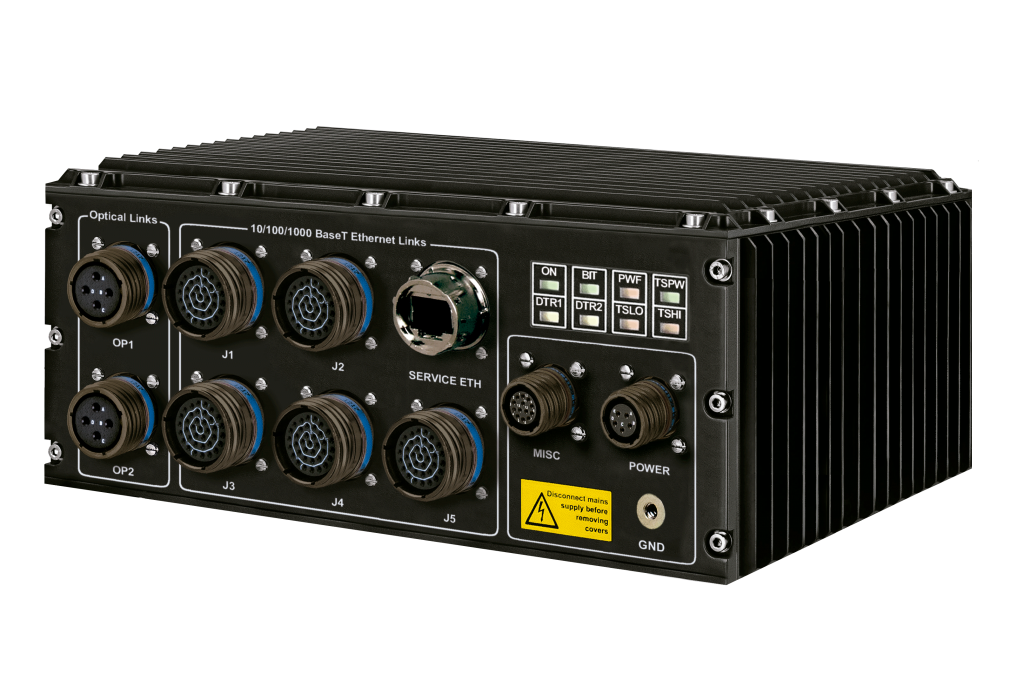

NVS-MIL2004HSR Router-Switch

Switch COTS L2/L3 gestionado de 25 puertos Ethernet con capacidad edge-computing

Características generales

  • 20x GbE ports
  • 4x 1000Base-SX Fiber optic ports
  • General purpose service Ethernet port
  • Latest generation ARM Cortex hardware
  • High-availability Seamless Redundancy (HSR)
  • Parallel Redundancy Protocol (PRP)
  • Precision Time Protocol (PTP)
  • Multilayer management, security & monitoring
  • Auxiliary RS232 console port
  • Edge computing capabilities for user defined applications
  • General purpose, PPS and IRIGb Input and Output available on auxiliary connector
  • Sealed military enclosure cold plate cooled
  • Dual redundant MIL-STD-704 AC/DC power supply
  • System operation front panel LED indicators
  • Optimized heat dissipation chassis design
  • Real Time High/Low temperature monitoring
  • Remote reset, battleshort & standby system control
  • Dual oversized in-line EMI/EMC power Input filters
  • Tested and certified by independent official laboratories per MIL-STD-810G & MIL-STD-461G
